GRG H22VL ATM

Details

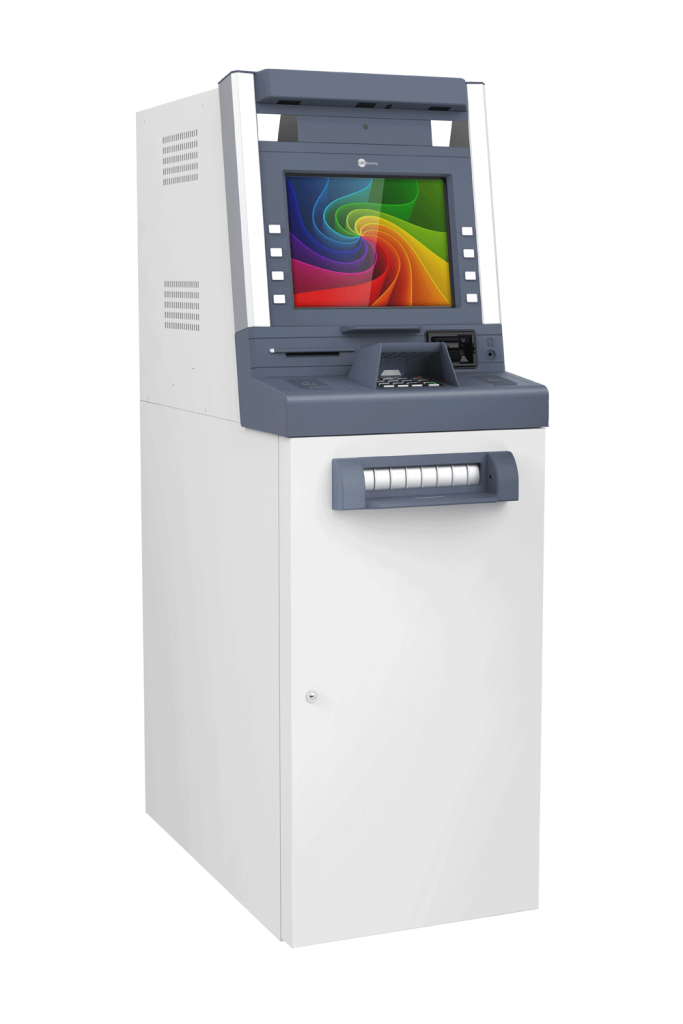

The GRG H22VL ATM is a high-performance bulk cash dispenser designed for banks and financial institutions. It enhances self-service transactions by reducing heavy counter operations and increasing cash transaction efficiency. With advanced security, reliability, and ease of maintenance, the H22VL is a compact, efficient, and secure ATM solution.

Features

Enhanced Cash Capacity:
- 67% increase in bulk cash withdrawal capacity.
- 17% larger dispensing cassette for more cash storage.
- Dispenses up to 7 notes per second, with 100 notes per transaction.
Secure Banking Operations:
- PCI 4.0 compliant EPP (Encrypted PIN Pad) for account security.
- Anti-skimming card reader with electromagnetic interference protection.
- Privacy filter & DVR surveillance system (optional).
User-Friendly & Versatile:
- 15” TFT LCD touch screen for an intuitive interface.
- Supports bill payments, card top-ups, fund transfers, PIN changes, and more.

Specification

PC Configuration: Intel ATOM D2550 / Core i3/i5/i7 (Optional), 500GB HDD, 4GB RAM.
Card Reader: Motorized IC/magnetic card reader with anti-skimming & power-failure card return.
Printer: Graphic thermal receipt printer (optional matrix/thermal journal printer).
Communication: Standard TCP/IP connection.
Environmental Conditions:
- Indoor: 0°C to 40°C
- Outdoor: -35°C to 50°C (with heating module).

Feature	H22V (Through-the-Wall)	AgeH22VL (Lobby ATM)
Installation Type	Wall-mounted (Rear Access)	Standalone (Front Access)
Cassette Capacity	4 cassettes	4 cassettes
Maximum Cash Capacity	14,000 banknotes	14,000 banknotes
Dimensions (H × W × D)	1716 × 616 × 1023 mm	1500 × 490 × 855 mm
Weight	490 kg	465 kg
